Zinc production: pH analyzers for the residue treatment plant.

Applications in other industries:
[Zinc production]
[Nickel production, chlorine process]
[Fertilizer industry]
[Nickel production, HPAL process]
[Alumina production]
[Titanium dioxide pigment prod.]
[Wastewater treatment]
[Cobalt production]
[Electroplating industry]
[Froth flotation, ore benefication]

Process description:
In a string of three tanks, residue (filter cake) from the filter presses in the purification steps is solved in spent acid.
The pH value is measured in the two first tanks. The pH values are adjusted automatically with two PID controllers and two valves which adds spent acid.

pH range : 2-2.5 pH. Flow: 3 m³/h. Tanks: 3 tanks each with a capacity of 40 m³. Number of analyzers: 2

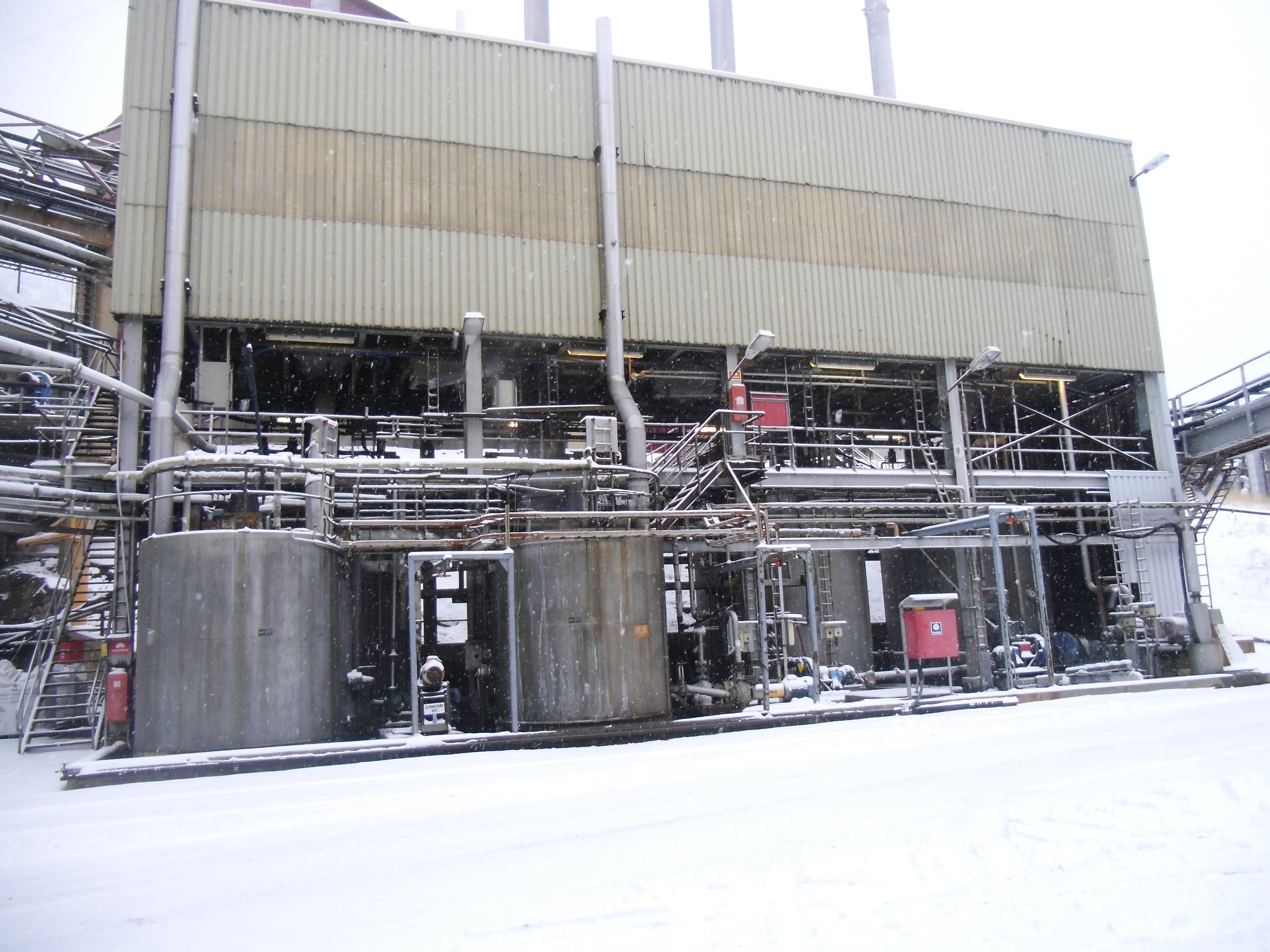

Copper-Cadmium residue treatment

The residue treatment plant.






Copper-Cadmium residue tratment analyzers

The two pH analyzers are mounted on top of the tanks.
